How UHF-ECG works
Real-time, non-invasive, regular 12(14) lead ECG setup
12(14) lead ECG mapping
Standard 12(14) lead ECG setup is all to start to measure.

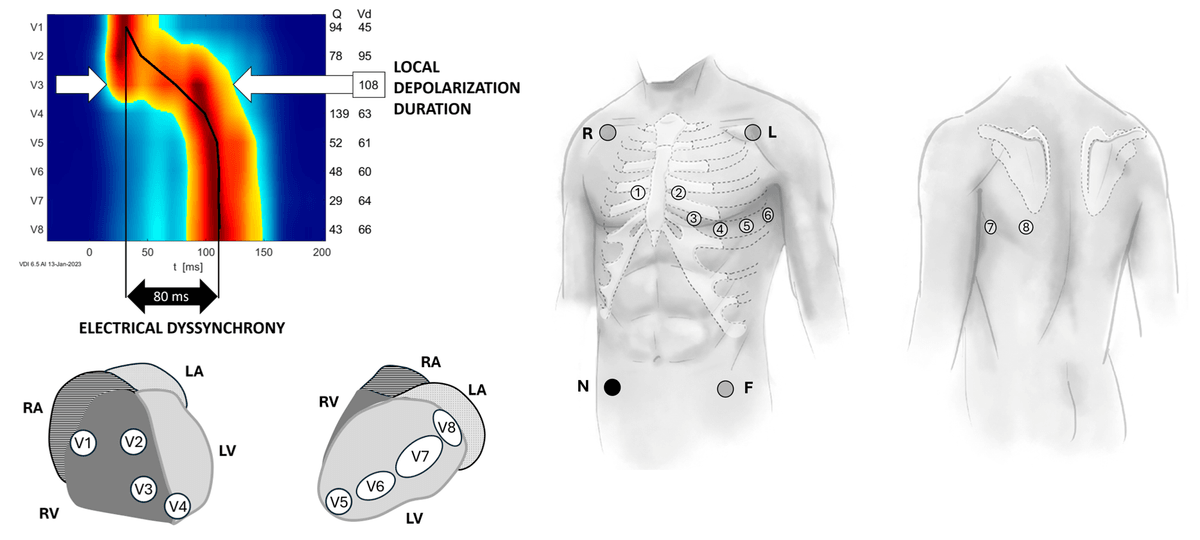

Redcolor indicates the time at which the greatest number of myocardial cells under
the electrode depolarize.
Activation patterns
Activation maps clearly show the ventricular activation pattern.
VDI UHF-ECG Atlas
Synchronous UHF-ECG activation example
All ventricular segments under chest leads are activated almost at the same time.

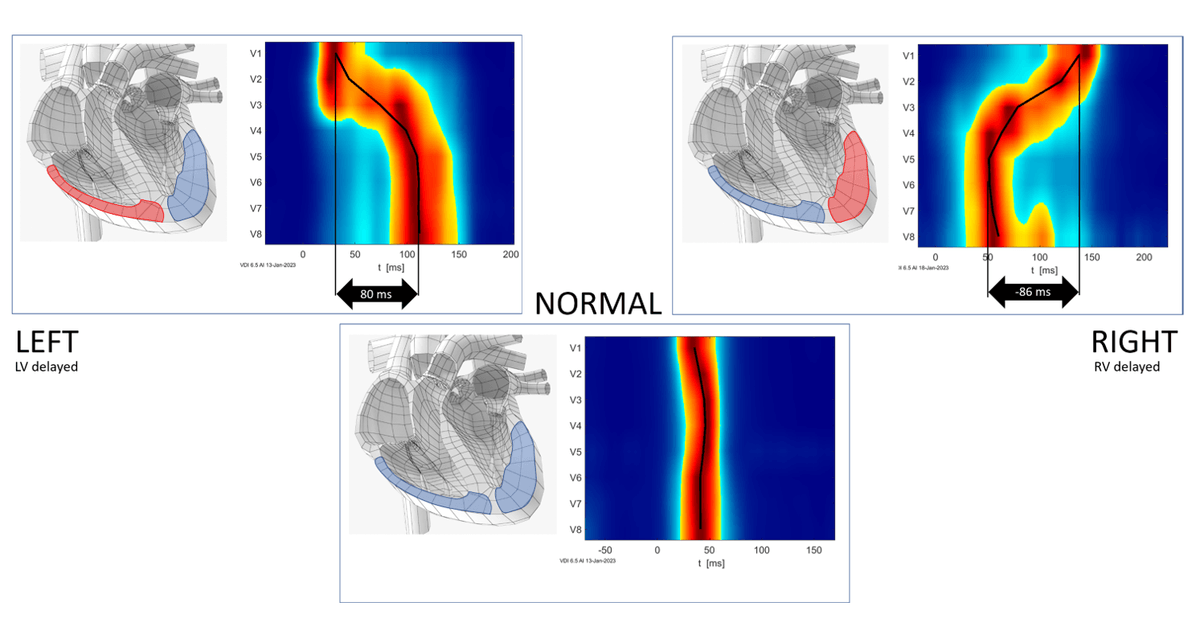

Dyssynchronous UHF-ECG activation
Dyssynchronous activation shows a significant time delay between individual chest leads.
UHF-ECG FAQs
How is UHF-ECG different from a standard ECG?
It's completely different and not a typical P-QRS-T ECG. It captures frequencies up to 1000 Hz during QRS, providing information about ventricular depolarization in selected ventricular segments that a standard ECG cannot detect.
What does UHF‑ECG show?
It provides an activation map that visualizes the timing and sequence of ventricular activation. The main numerical parameters include electrical dyssynchrony and local activation duration.
Is UHF‑ECG safe?
Yes. It is completely passive and non‑invasive, using standard chest electrodes.
When is UHF‑ECG useful?
It supports CRT, conduction system pacing, assessment of dyssynchrony, and
evaluation of conduction abnormalities.UHF-ECG Bibliography
